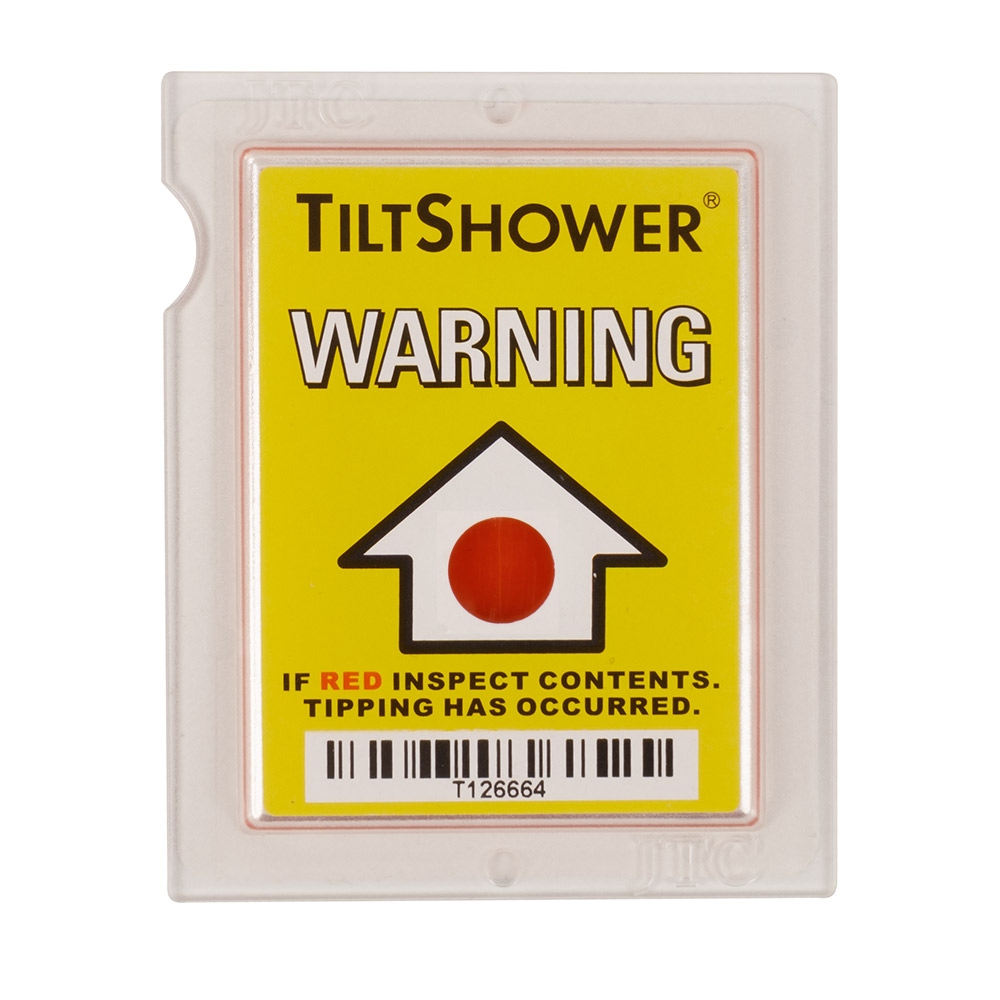

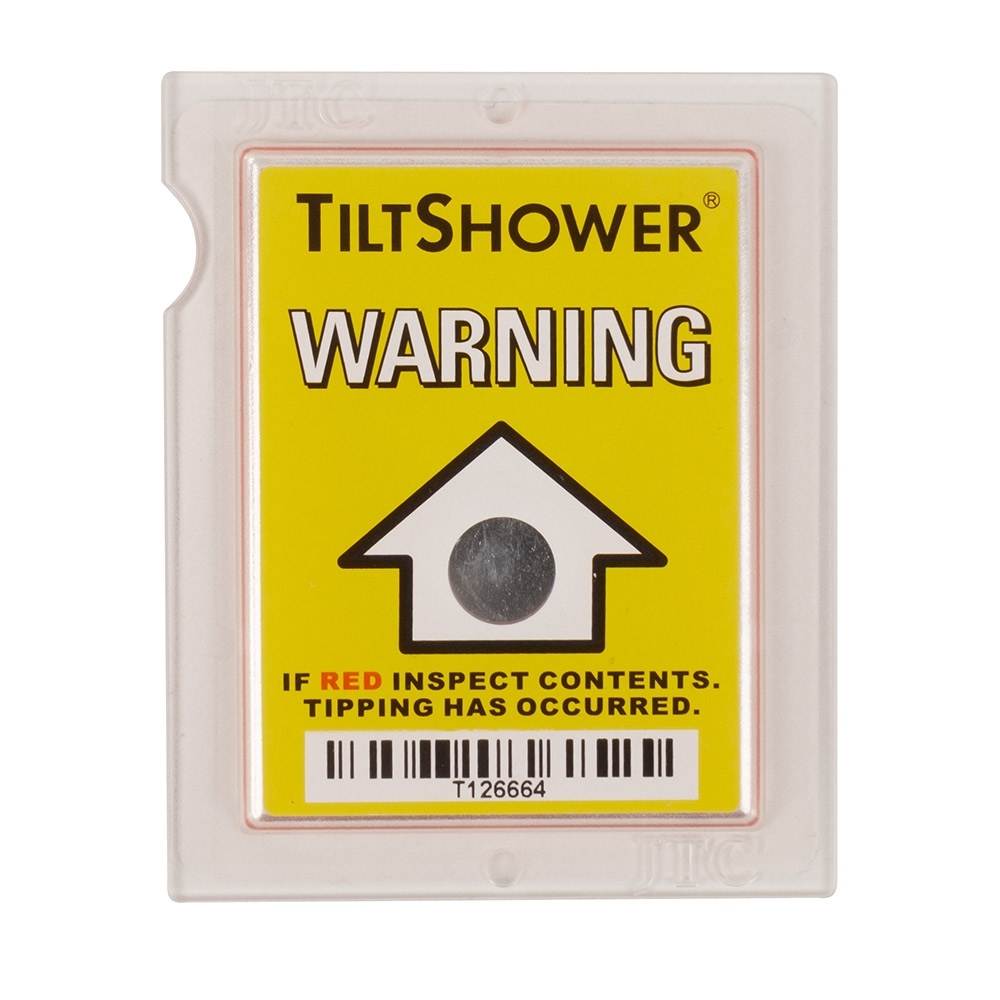

H768 Self-adhesive bale tilt indicator
Tilt Indicator for transporting sensitive equipment
The Tilt Indicator self-adhesive label is a one-time inspection element that immediately detects unwanted package tilt during shipping or handling. The indicator is equipped with a special cavity with a colour indication that reacts to tilt angles greater than 80° - exceeding this angle will cause the window to turn colour, clearly indicating improper handling.
The indicator cannot be reset or returned to its original state, ensuring absolute reliability and trustworthiness in the event of a claim or inspection. The indicator is small, lightweight and easy to apply to any clean surface of the shipping container. The indicator label is enclosed in a clear plastic sleeve, with a self-adhesive back.
... More
Product description
Key features
Activation when tilted over 80°
Disposable - colour change is permanent and irreversible
Clear visual window with colour indication
Easy application with self-adhesive layer
Increases carrier liability and protects your shipment from mishandling
Protects valuable or sensitive goods
Clear evidence of mishandling during transport
High credibility in claims or quality control
Professional security for every shipment
Examples of practical applications
Medical and laboratory equipment: incubators, centrifuges, diagnostic instruments - requiring precise horizontal handling
Sensitive electronics: computer equipment, rack servers, UPS units, optical devices
Measuring and calibration instruments: scales, spectrometers, laser equipment - require transport without tilting
Works of art and fragile objects: galleries, museums, transport of glass, ceramics, models
Industrial machinery: hydraulic units, pressure vessels, machines with calibration or oil filling
Technical parameters
Dimensions: 60x75x5mm (WxHxD)
Material: plastic, paper
Activation: when tilted more than 80° to the side
Disposable - cannot be returned to original state
Rear self-adhesive layer + 2 3mm holes (top and bottom) for attaching the indicator with screws
Each indicator has a unique number and barcode to prevent replacement with a new piece
Instructions for use
Clean the surface of the packaging

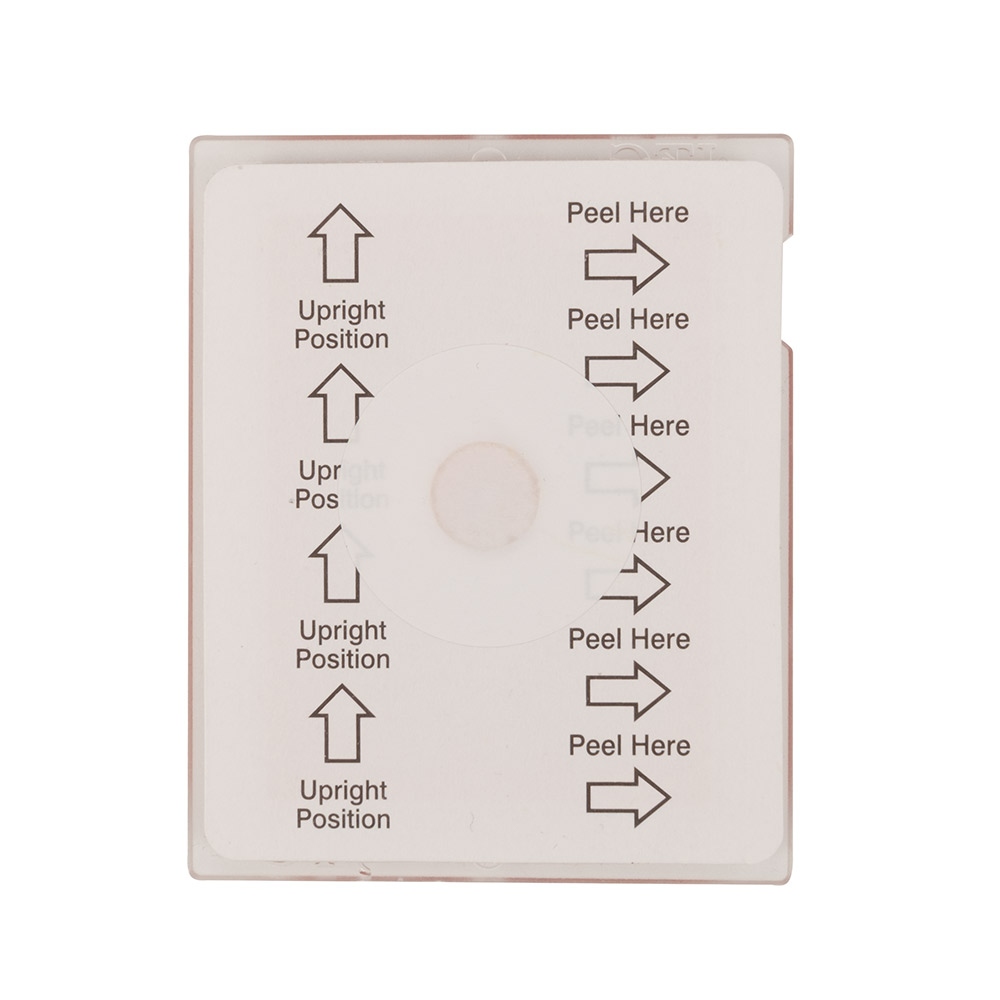

Peel off the protective film and stick the indicator in a visible place (preferably at the top edge of the packaging)
Peeling off the back sticker will activate the indicator.
After peeling off, take care not to tilt the indicator before sticking it on.

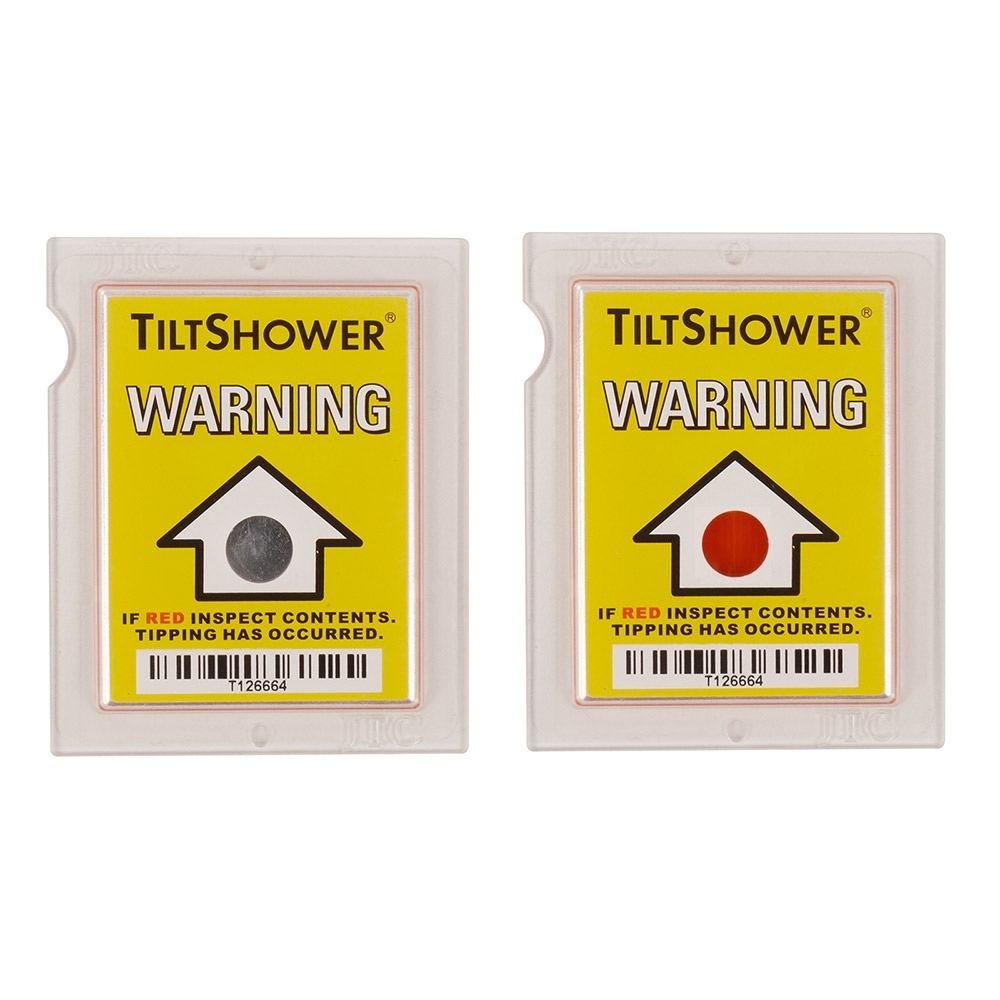

Tilting above 80° will cause activation and discolouration - the change is permanent
The adhesive on the back of the indicator may loosen over time due to temperature fluctuations or vibration, so we recommend attaching the indicator label using the two holes in the indicator body with screws or nails. The indicator is for single use only. It does not contain any electronics or batteries, the principle of the indicator is mechanical.
The price is for 1 piece
| Dimensions | 60mm x 75mm (2.362″ x 2.953″) |
| Price | 1 piece |
| Shape | Rectangle |
| Glue | Stronger |
| Weight | 0.012 kg |
Specification
